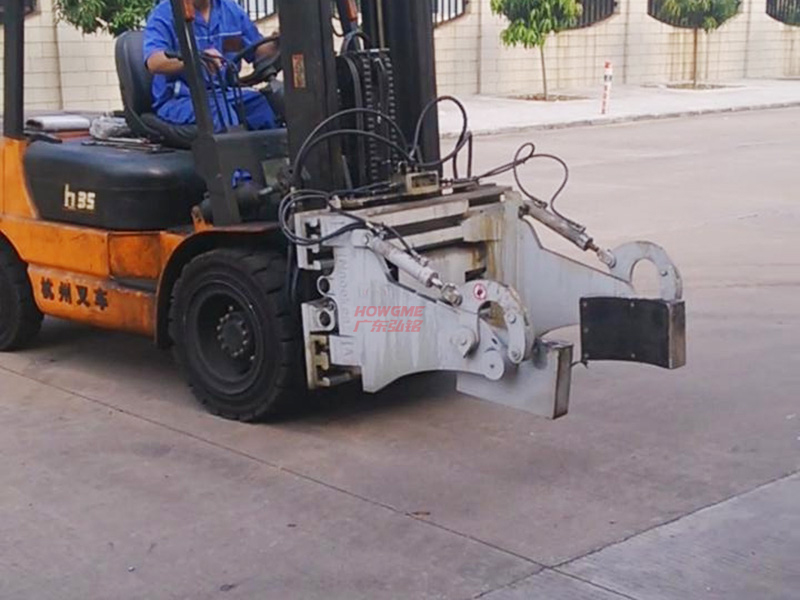

Product Name: Forward tilt bucket clamp

Drum Clamps

• The anti-skid rubber sheet in the clamp is safe, efficient and replaceable.
• An intelligent valve is equipped to automatically adjust the oil-pressure flowrate for avoiding damage to a metal drum.
• Simple in structure and easy for maintenance.
• The inclined column bearing in the forward-tilting part ensures high stability and durability.
• The reasonable design of the hydraulic elements makes the hydraulic system get good protection and a longer service life.
• The selection of wear-proof strips of German Bayer’s material effectively prevents the guide axis and guide slot from abrasion.

Product Parameters

Inquiry

Product Parameters

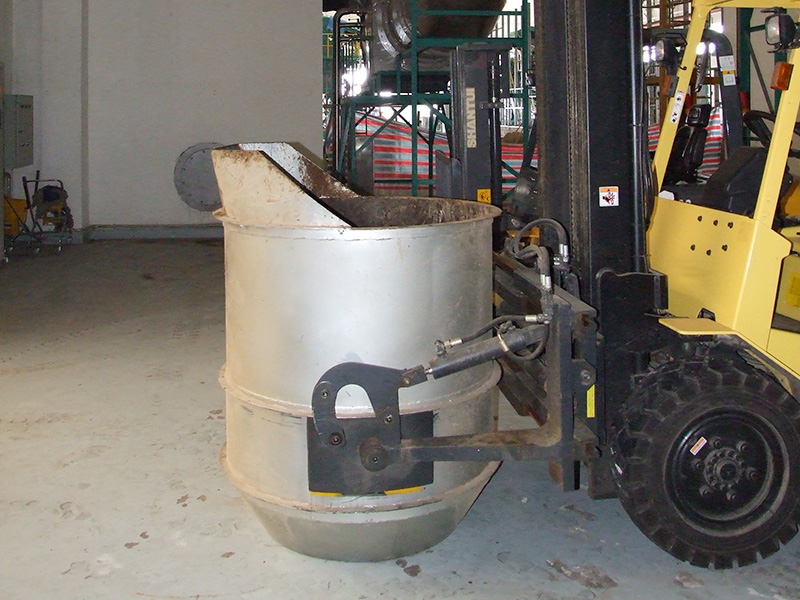

It is applied to the no-pallet carrying and stacking of metal drums such as hydraulic oil drums, column drums, dustbins, etc, in the petroleum and chemical industries where goods in drums need to be dumped safely and effectively.

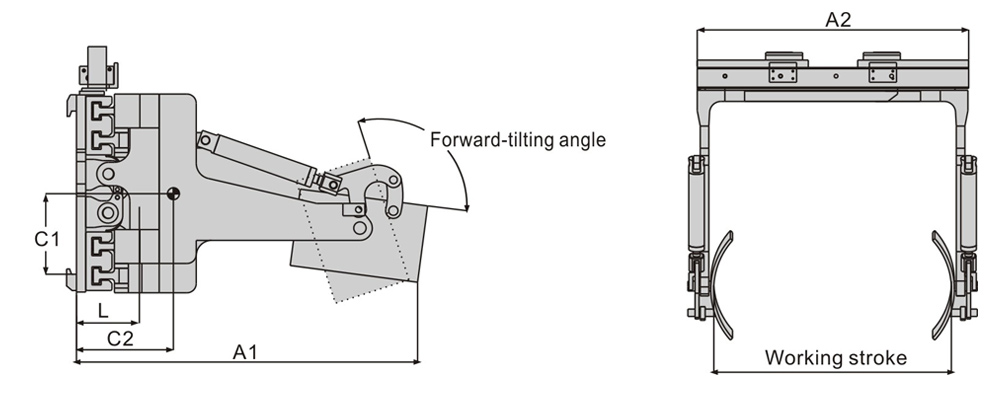

Model	Carrying Capacity	Frame dimension	Forward-tilting angle	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	Kg	A1×A2(mm)		(mm)		Kg	L(mm)	C2(mm)	C1(mm)
JDE05A-E15L	500	1175×1000	120°-150°	350-1500	2	646	165	273	270
JDE10A-E15L	1000	1175×1000	120°-150°	350-1500	2	646	165	273	270
JDE15A-E15L	1500	1178×1000	120°-150°	350-1500	2	667	168	277	272
JDE20A-E15L	2000	1178×1000	120°-150°	350-1500	2/3	678	168	277	272

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and forward-tilting are added with one more oil circuit respectively.
3.A stands for standard, E, the fifth generation product, and L, forward-tilting.
4.The various types listed above are the common products , and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
