Product Name: Four-fork Pushoff

Pushoff

• Reasonable design of hydraulic elements make the hydraulic system get good protection and long service life.
• The one-time-forming forged fork is safe, durable and hard to deform.
• The oil-free lubrication system applied to each joint ensures easy maintenance and long service life.
• Reasonable integrated structure, broad view, flexible and easy to operate;
• The fork can be used to move goods without being removed.
• Suitable for any kind of forklift.

Product Parameters

Inquiry

Product Parameters

Applied to no-pallet carrying, loading and unloading of baggage and cased goods such as chemical fertilizer, plastic particles, fodder, cement, decorative material, etc

叉车推出器|货叉式推出器|叉车推出器价格|叉车属具推出器

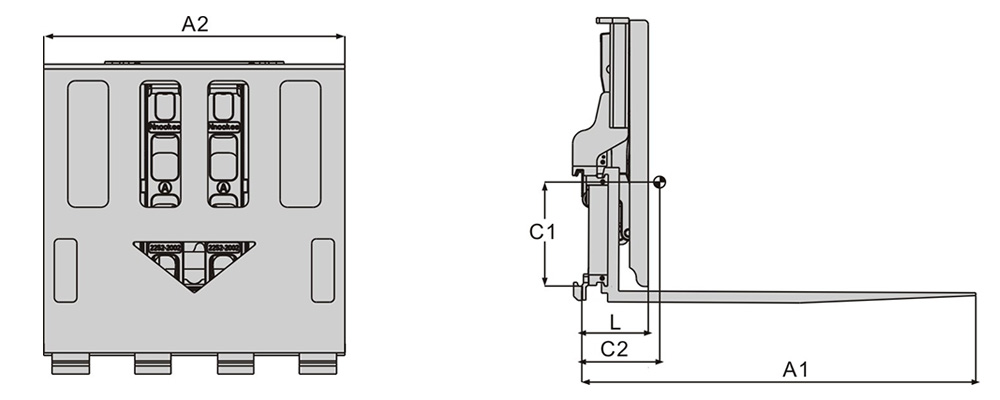

Model	Carrying Capacity	Frame dimension	Push-off stroke	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	Kg	A1×A2(mm)	mm		Kg	L(mm)	C2(mm)	C1(mm)
PME15A-G12C	1500	1400×1000	1200	2	390	270	315	450
PME15B-G12C	1500	1415×1000	1200	2	405	275	318	450
PME20A-G12C	2000	1400×1000	1200	2/3	490	270	315	450
PME20B-G12C	2000	1425×1000	1200	2/3	510	295	325	456
PME25A-G12C	2500	1400×1000	1200	3	560	275	315	452
PME25B-G12C	2500	1425×1000	1200	3	580	295	328	458

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The pushoff and side shifting are added with one more oil circuit respectively.
3.A stands for standard, B, side shifting, G, four-fork and C,fork length.
4.The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
