Fork Clamps

Product Name: Revolving Fork Clamps

Fork Clamps
• A pressure retaining valve is equipped to avoid damage to the goods due to abrupt crack of oil pipe.
• High safety performance is ensured for its two-way hydraulic rotation within 360°and self locking at any angle.
• Every connecting pin and axle are made of alloy and manufactured through three-process treatment.
• With compact structure, beautiful, efficient and easy to operate, raising working efficiency.
• Suitable for any kind of forklift.
Product Parameters
Inquiry
Product Parameters
Applied to the carrying, loading, unloading and stacking of various kinds of soft bale goods such as waste paper, cased goods, waste plastics, chemical fiber, etc, without pallets or with regular pallets.

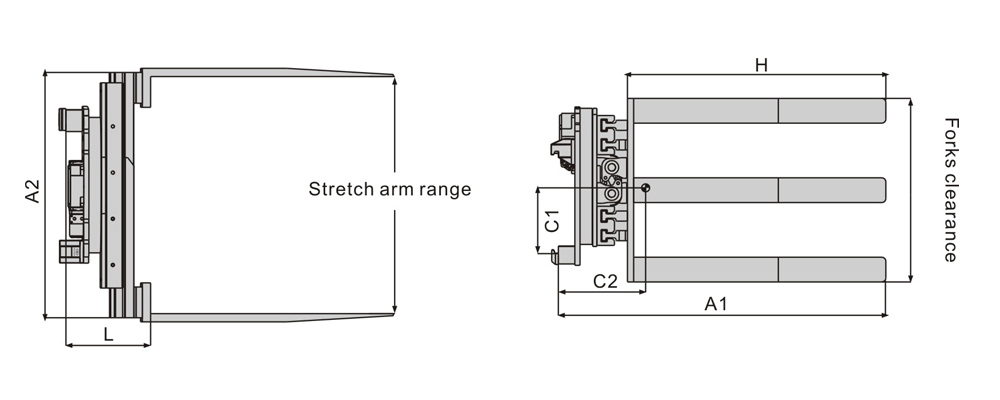

Model Carrying Capacity Frame dimension Length of fork Opening range Installation Grade Self-weight Load Loss Distance Horizontal Center of Gravity Verticla Center Gravity

Kg A1×A2(mm) (mm) (mm)
Kg L(mm) C2(mm) C1(mm)
RDM20A-D19C 2000 1640×1100 1200 620-1900 3 1025 409.5 352 293
RDM20A-D20C 2000 1640×1200 1200 680-2000 3 1044 409.5 355 298
RDM20A-D21C 2000 1640×1200 1200 730-2100 3 1065 409.5 355 298

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with 1 more oil circuit respectively.
3.A stands for standard, D, revolving six-fork ,and C, fork length.
4.The various types listed above are the common products and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
