Product Name: Single arm Tyre Clamp

Tyre Clamp

• The ingenious clamp arm design with a smooth surface and small thinness enable it to be operated in a narrow space and reduce the damage to a tire.
• High safety performance is ensured for its two-way hydraulic rotation within 360°and self locking at any angle.
• The hydraulic elements are designed to be reasonable and durable.
• The compact structure and light weight increase the forklift’s service life.

Product Parameters

Inquiry

Product Parameters

It can realize the safe and efficient carrying and stacking of various tires without the use of pallets, and greatly reduces work intensity, saves large amount of storage room and improves work efficiency.

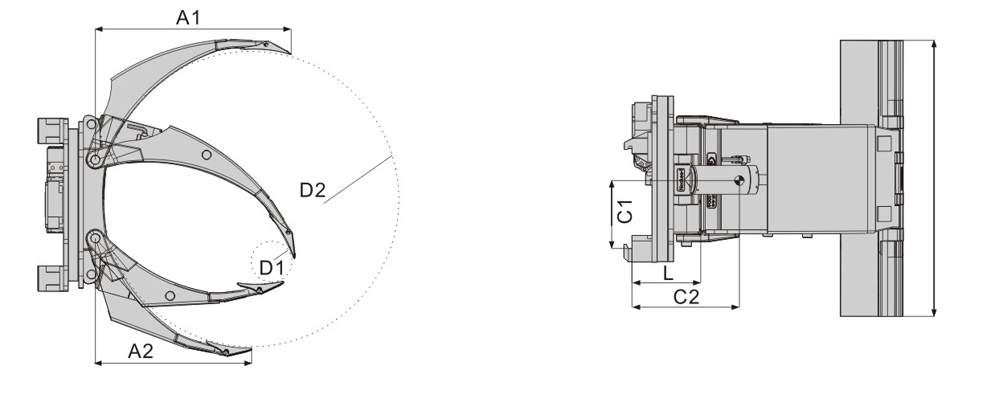

Model	Carrying Capacity	Frame dimension	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	Kg	A1×A2(mm)	(mm)		Kg	L(mm)	C1(mm)	C2(mm)
TSC15A-E13C	1500	890-606	580-1350	2	580	260	296	279
TSC15A-E13F	1500	890-606	580-1350	2	620	260	296	279
TSC15B-E13C	1500	890-606	250-1350	2	610	260	296	279
TSC15B-E13F	1500	890-606	250-1350	2	650	260	296	279
TSC15A-E16C	1500	984-836	600-1600	2/3	626	268	323	304
TSC15A-E16F	1500	984-836	600-1600	2/3	646	268	323	304
TSC15B-E16C	1500	984-836	300-1600	2/3	648	268	323	304
TSC15B-E16F	1500	984-836	300-1600	2/3	688	268	323	304

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with 1 more oil circuit each respectively.
3.A stands for fixed short arm, B, adjustable short arm, E, single arm, C clamping plank size 1100mm ,and F,clamping plank size 1500mm.
4.The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
